Magnetic lock Bracket
There are 13 Similar products,Comparison

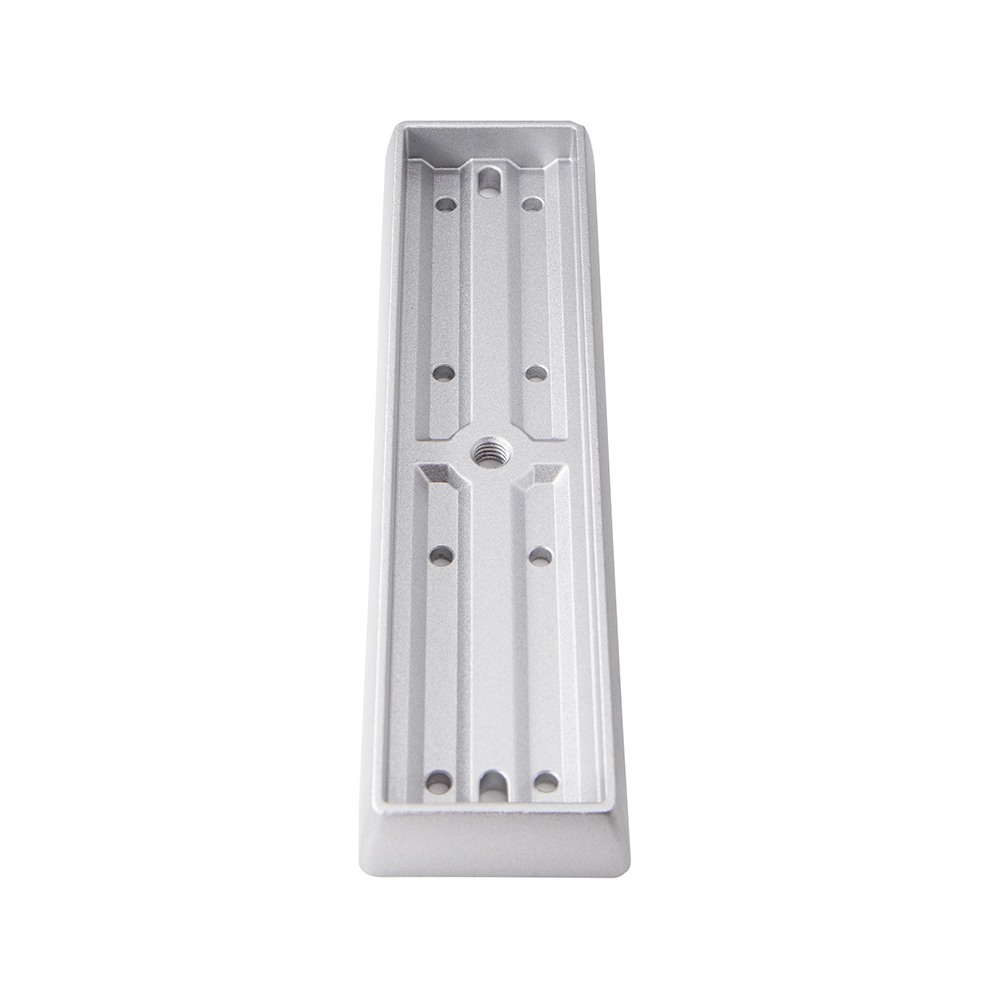

Installation groove of Armature plate
Model:MBK-180IN/280IN/350IN/500IN
I bracket1. We have different models : MBK-180I/MBK-280I/MBK350I/MBK-500I2. I bracket is used to install the plate on the door leaf. 3. Material are High Strength Aluminum.
Keywords:
Prev:Nothing
Share to:
Product Parameter Parameter Description

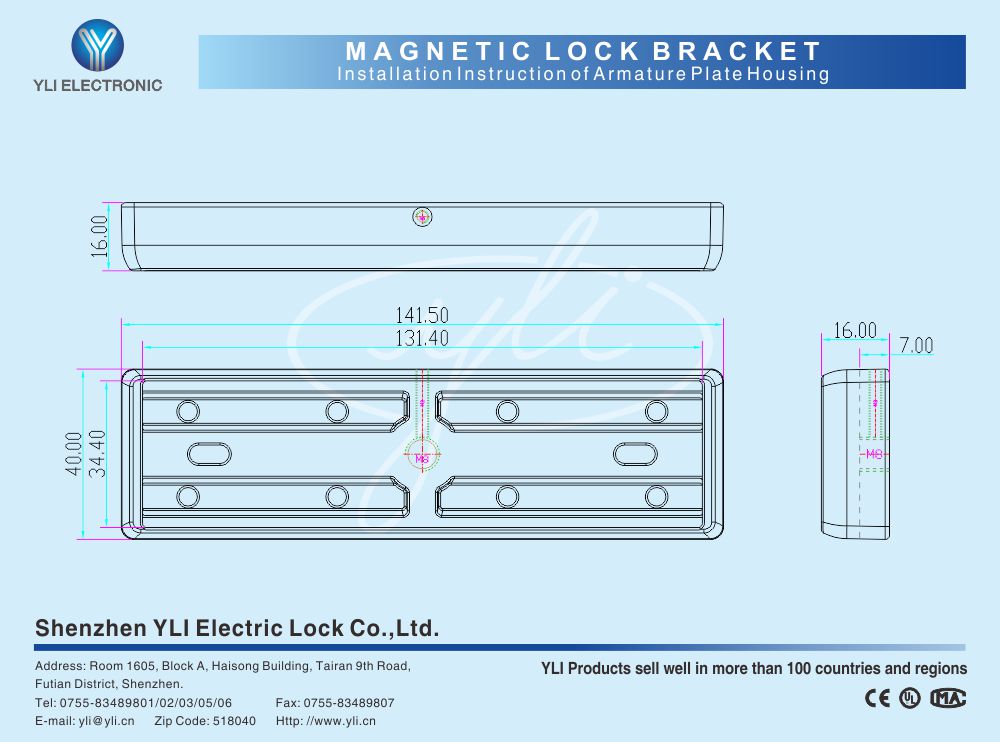

Dimension 141.5x40x16(mm)(MBK-180IN)

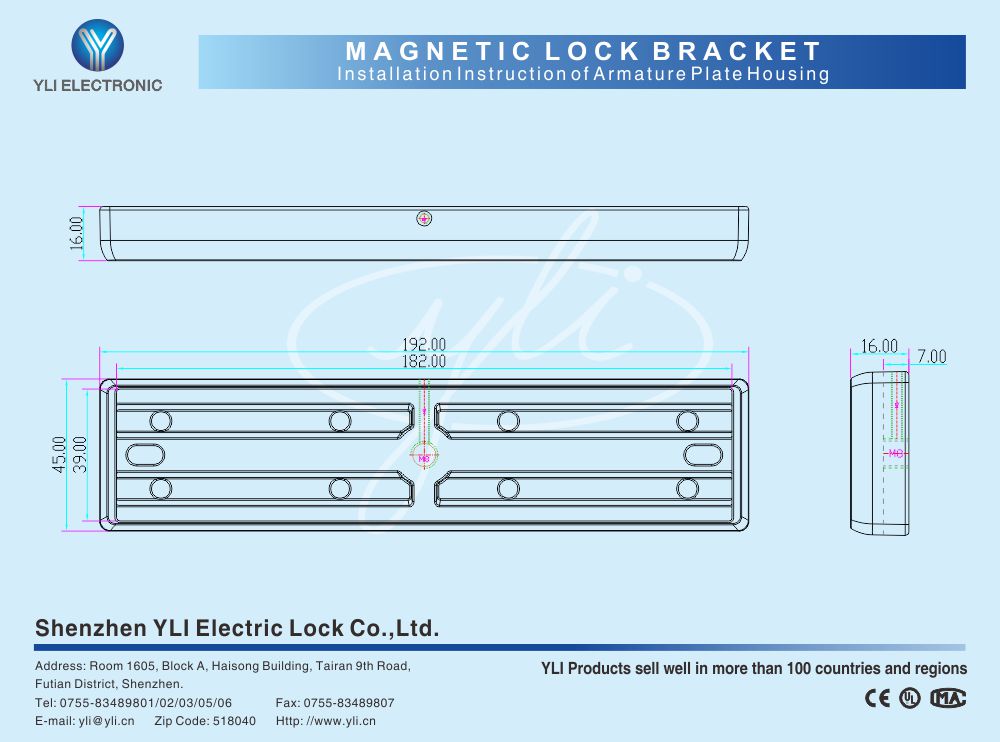

192x45x16(mm)(MBK-280IN)

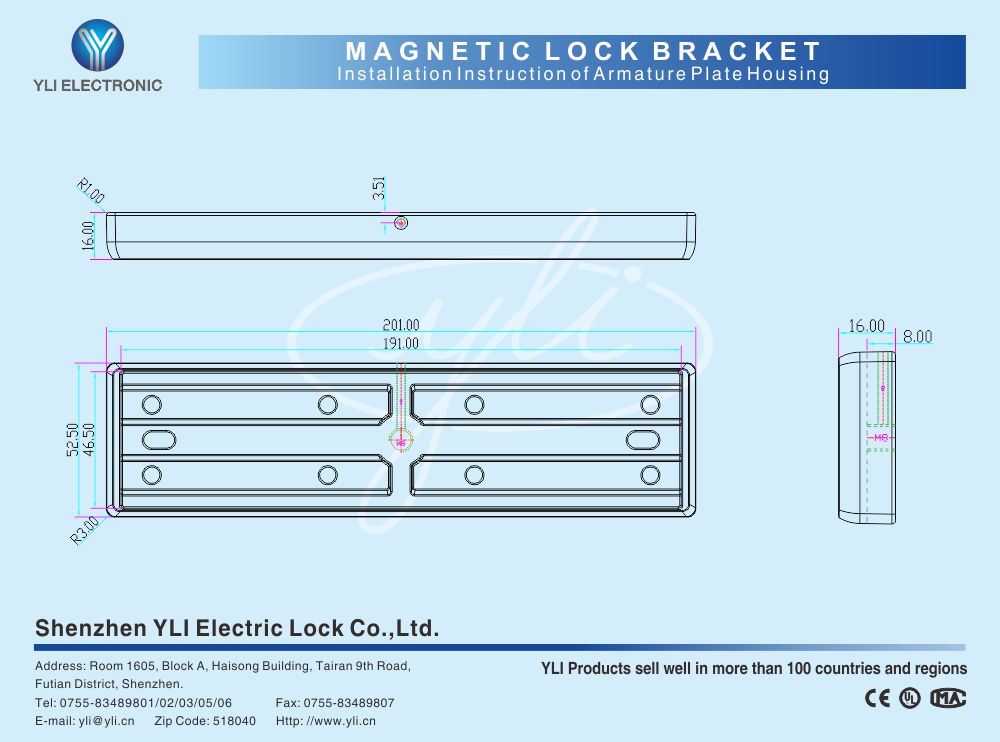

201x52.5x16(mm)(MBK-350IN)

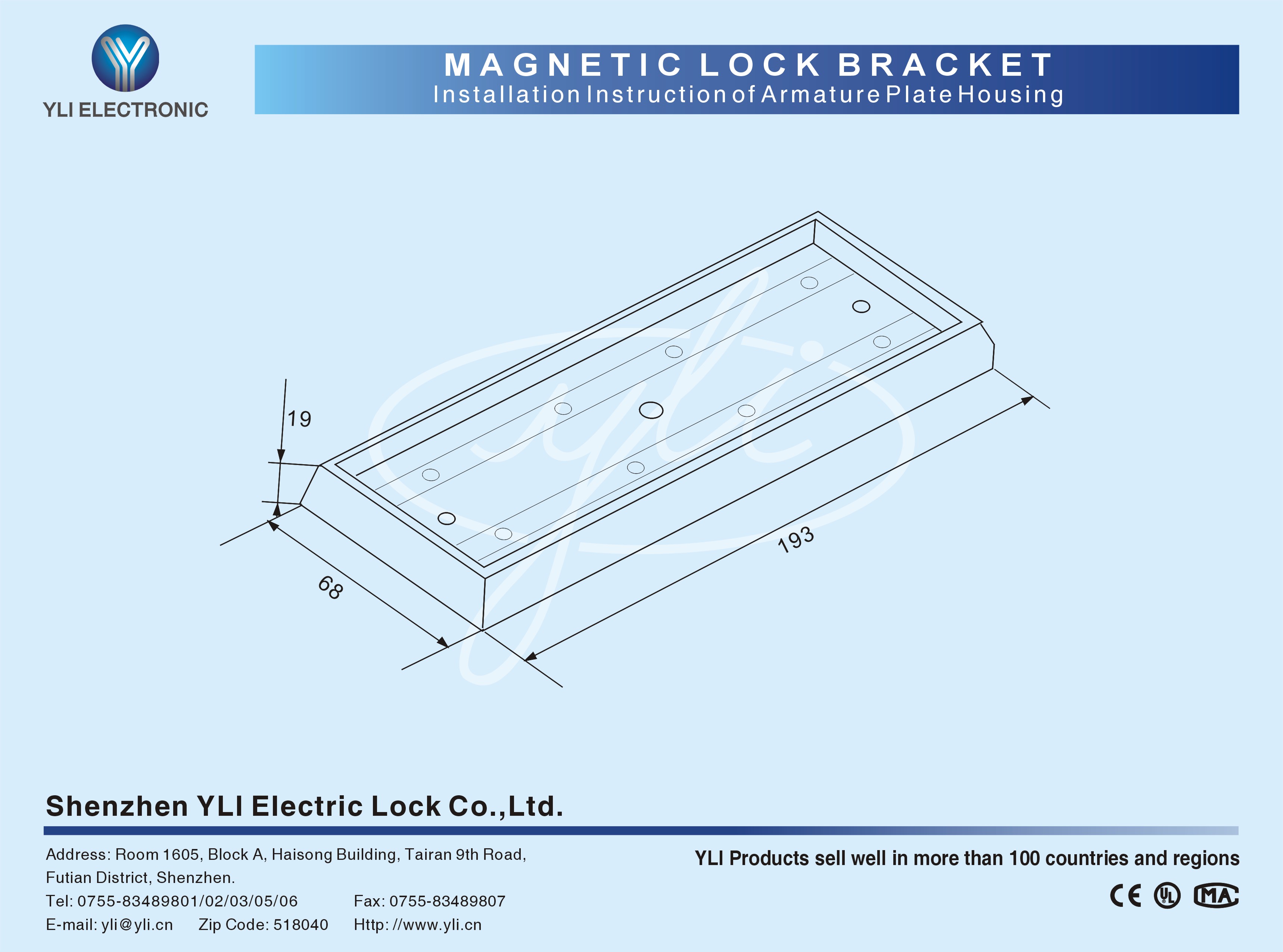

193x68x19(mm)(MBK-500IN)
Material High Strength Aluminum, Sandblast Finished
Suitable Narrow Door
Opening Mode 90 Degree Door
Suitable For Metal Door,Narrow-Frame Door,Fireproof Door
Suitable For Magnetic lock from YLI
Finished for Shell Anodized aluminum
Weight 0.22kg / 0.33kg / kg / 0.36kg
Certification CE-EMC RoHS REACH WEEE



Special Aluminum, Firm and Durable.

Special Design, Suitable with all kinds of Doors.

The Best Choice of Access Control.








Warranty Service will be honored if the damage is not caused by human, YLI Provides 1 years warranty for relative products. On the contrary, YLI will charge extra if repair. More information, please browse our service centre.

YLI Company retains right to modify the specification of products, and for parameters amendment of products, we will not inform in advance. The relative pictures are not allowed to used in any other way without the consent of YLI Company. Meanwhile, we reserved all the rights of law for any tangle.
