Pinching Sensor
There are 4 Similar products,Comparison

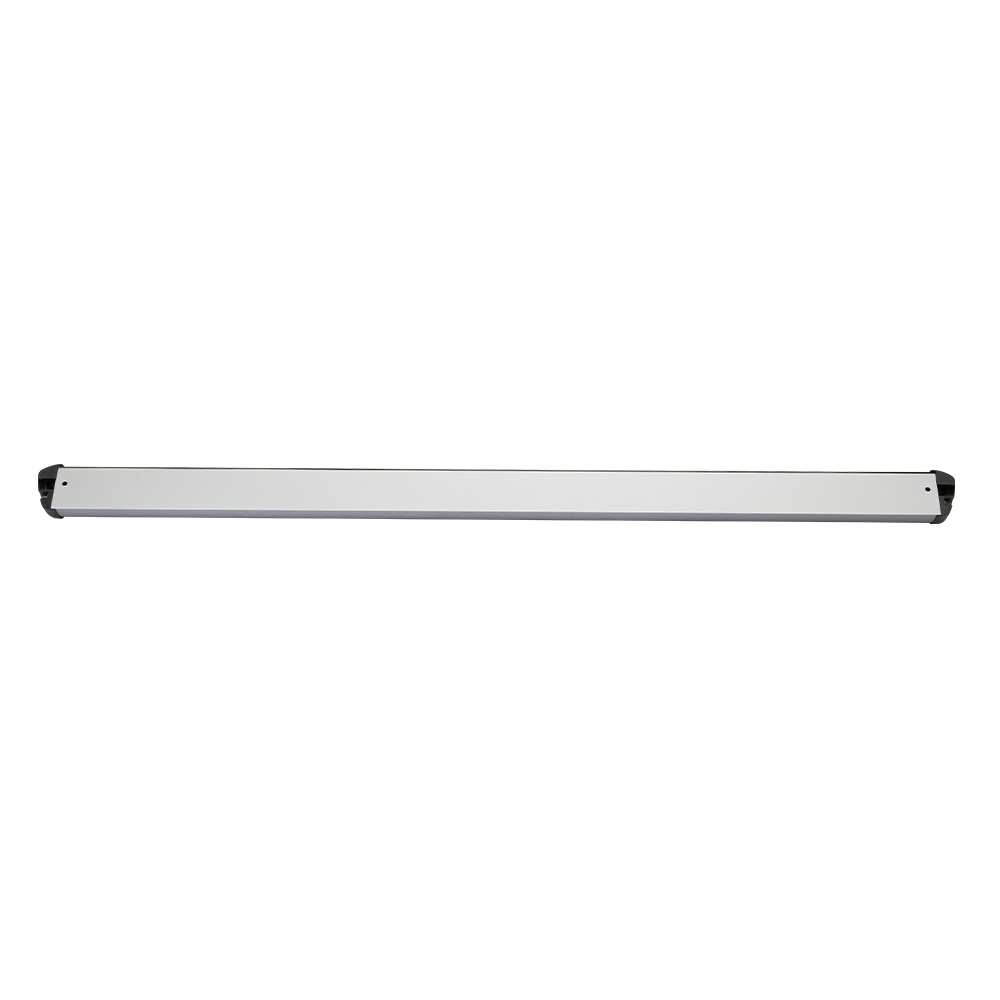

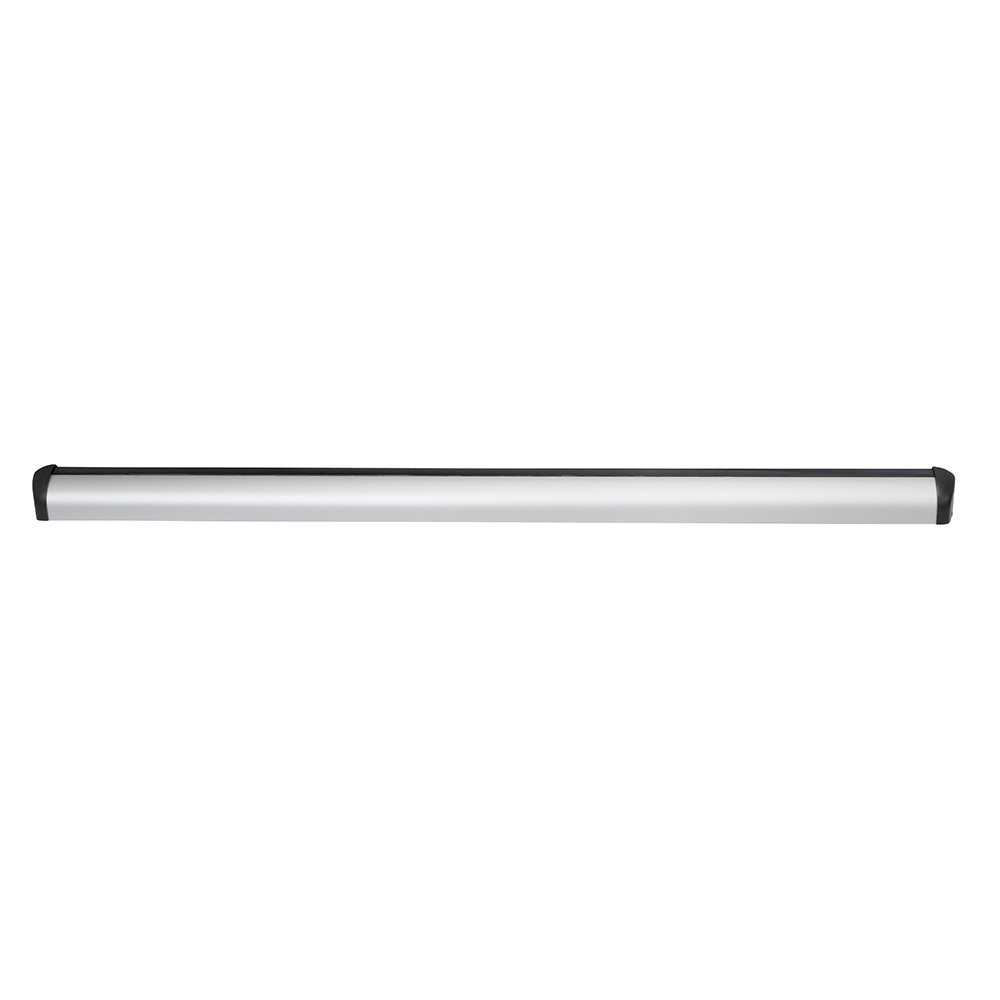

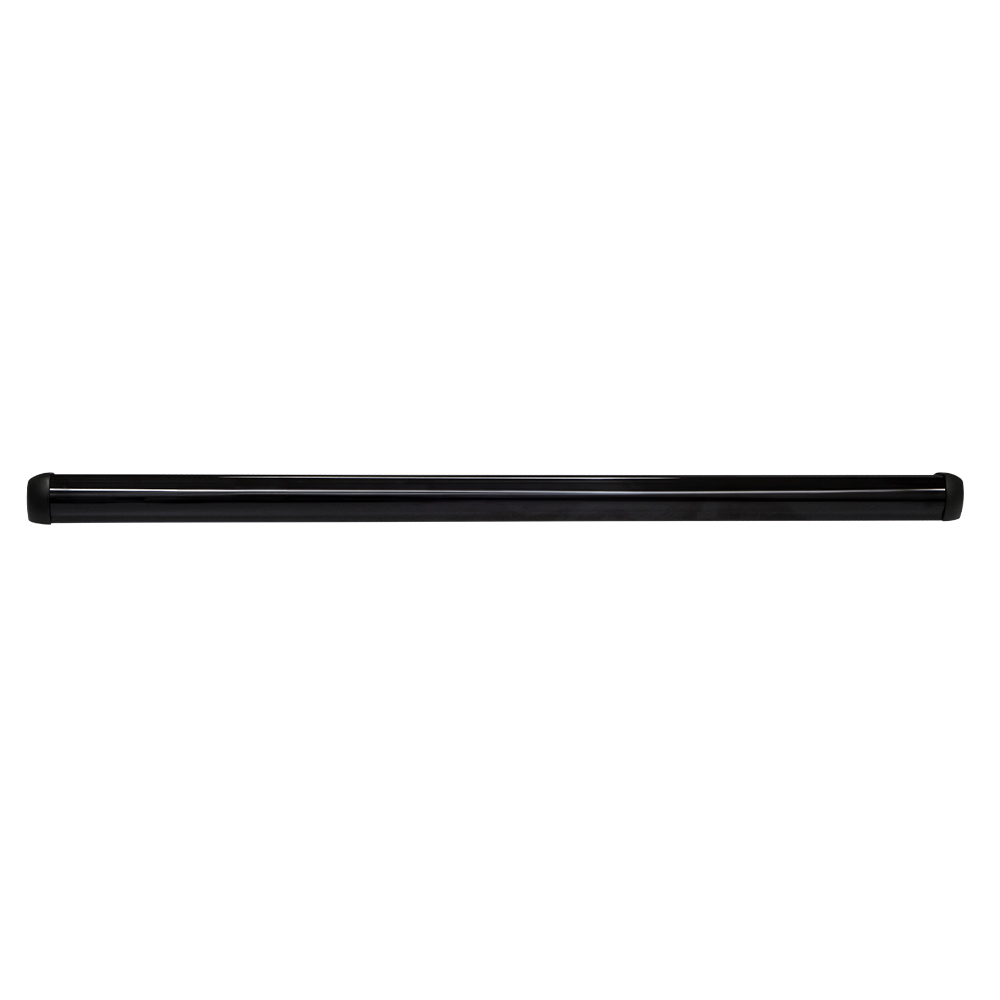

Laser Safety Curtain Sensor
Model:YAD-121DTL
Keywords:
Share to:
Product Parameter Parameter Description
Sensor dimension 750x31x20mm(default)
900x31x20mm, 1200x31x20mm(optional)
Working voltage AC/DC 12-30V
Detection principle Time-of-Flight technology(TOF)
Light medium 890nm infrared laser
Laser category Class Ⅰ eye-safe laser
Detection diameter 100mm light spots(2.8meters height)
Detection reaction time ≤50ms
Detection range away from the ground large than 20CM
Detection angle 0-25° adjustable
Installation height(max) 5m(fixed position), 3.5m(moving door leaf)
Trigger mode Moving or stationary
Function instruction LED indicator, standby: BLUE, detection: RED
Shell material Aluminum alloy, ABS, PC



 coming soon

 coming soon

Warranty Service will be honored if the damage is not caused by human, YLI Provides 1 years warranty for relative products. On the contrary, YLI will charge extra if repair. More information, please browse our service centre.

YLI Company retains right to modify the specification of products, and for parameters amendment of products, we will not inform in advance. The relative pictures are not allowed to used in any other way without the consent of YLI Company. Meanwhile, we reserved all the rights of law for any tangle.

 coming soon

 coming soon
