Infrared Sensor
There are 12 Similar products,Comparison

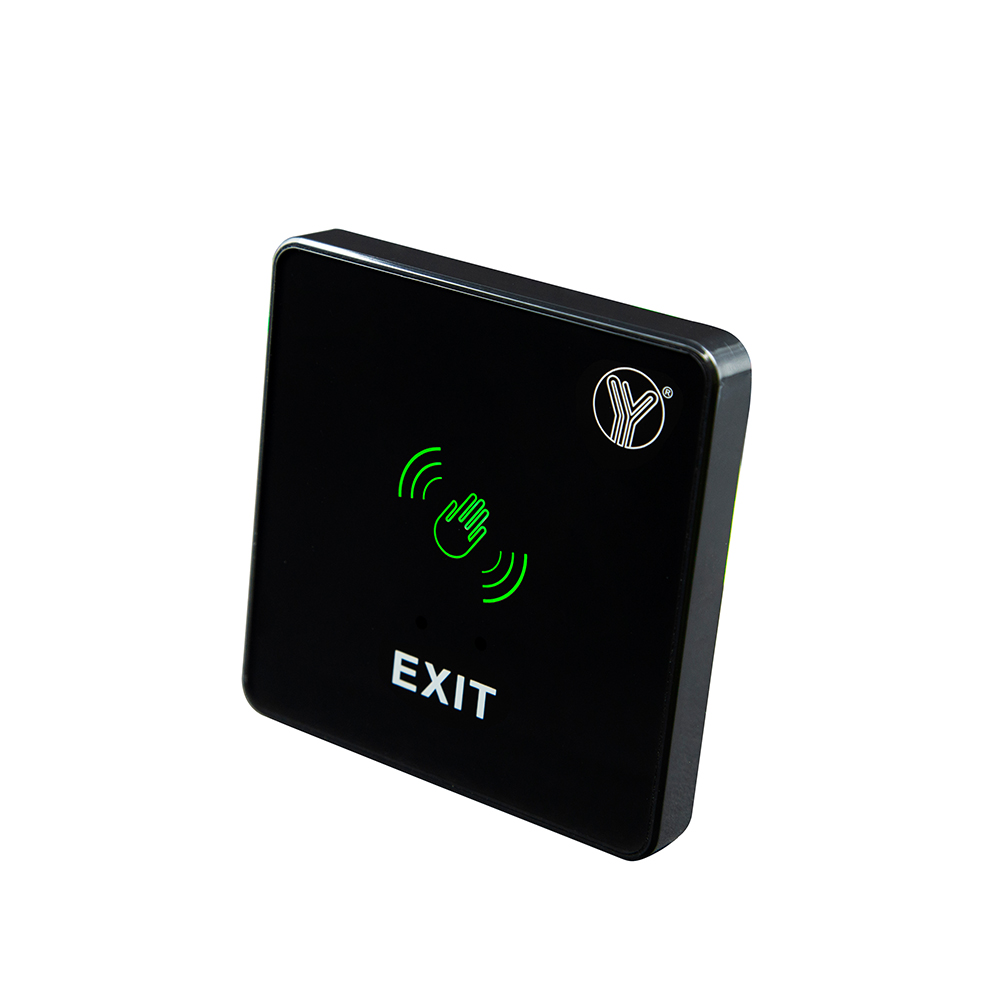

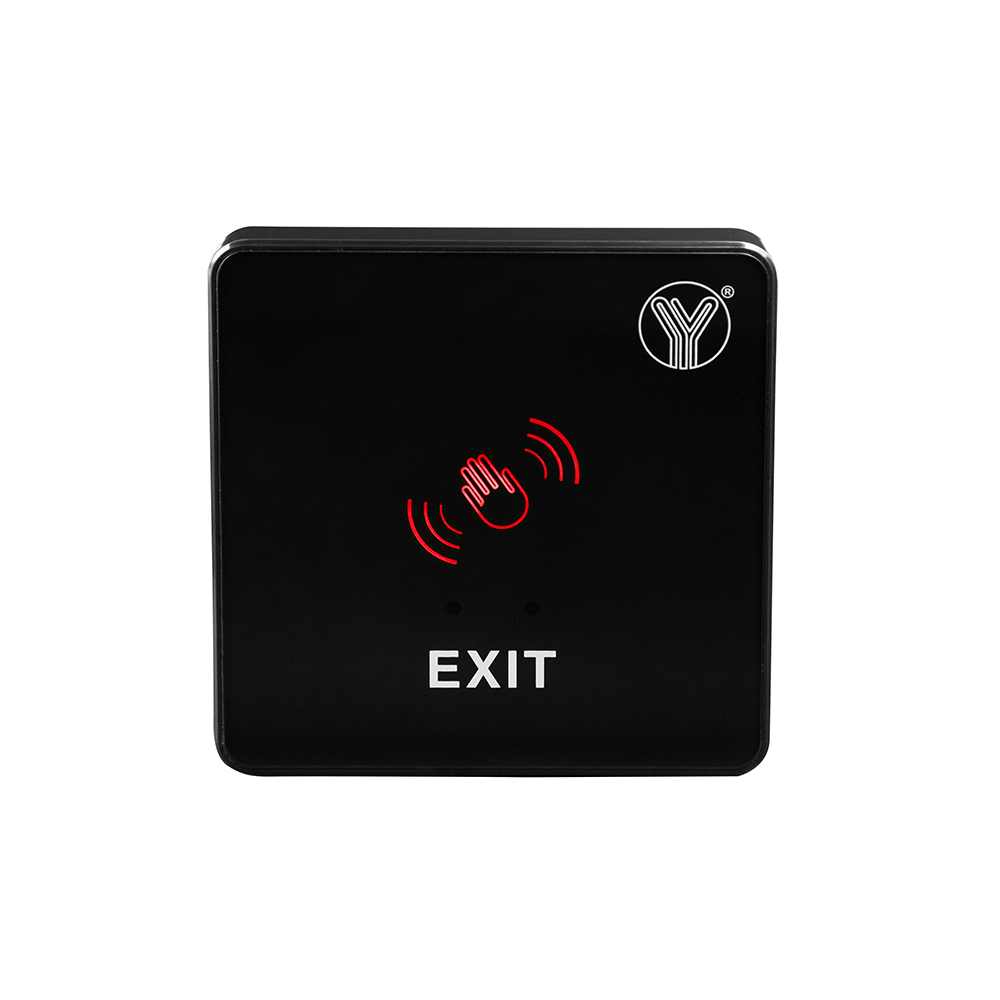

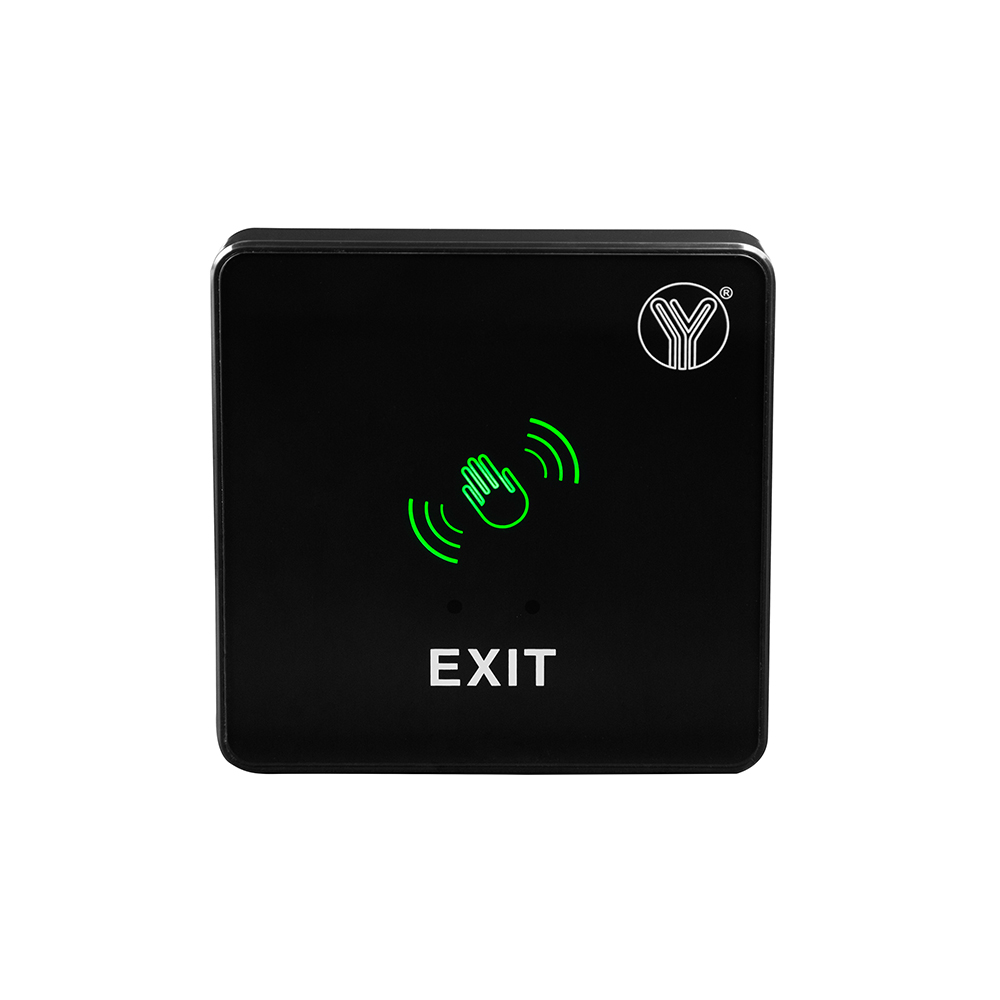

Infrared Sensor Exit Button
Model:ISK-843(LED)
ISK-843(LED)3 is an Infrared Sensor Exit Button . 5~20cm induction distance is adjustable, LED Status: Red: Standby Green : Operation.
Keywords:
Share to:
Product Parameter Parameter Description
Dimension 86Lx86Wx12H(mm)
Input 12~24VDC
Current ≤60mA
Output contact NO/NC/COM
Mechanical life 1000,000 tested
Contact rating 1A 24VDC
LED Status  Red: Standby  Green : Operation
Material for Cover Plate Tempered glass with mirror treatment
Detection range 5~20cm (Adjustable)
Operating temp -20℃~+50℃(14-131F)
Weight 0.2kg
Certification CE-LVD REACH
Design without Mechanical Bolt
Stainless steel Panel with Elegant Style
Tested to 1000,000 Cycles
Three Contact Output,Suitable for
all kinds of locks
The Best Choice of Access Control


Warranty Service will be honored if the damage is not caused by human, YLI Provides 1 years warranty for relative products. On the contrary, YLI will charge extra if repair. More information, please browse our service centre.

YLI Company retains right to modify the specification of products, and for parameters amendment of products, we will not inform in advance. The relative pictures are not allowed to used in any other way without the consent of YLI Company. Meanwhile, we reserved all the rights of law for any tangle.
