Infrared Sensor
There are 12 Similar products,Comparison

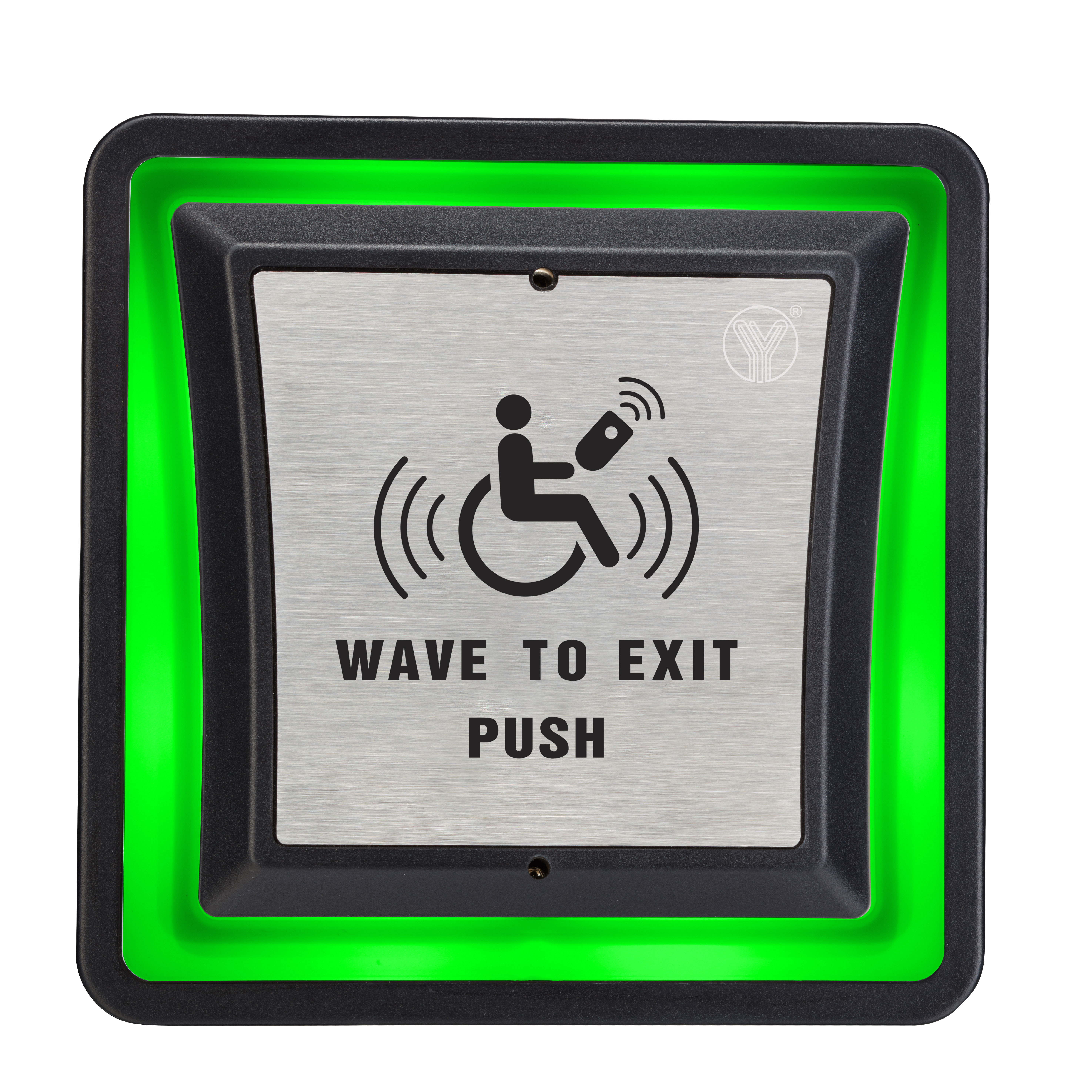

Exit button with triple functions of push and infrared sensing and remote control
Model:PBK-871RC(LED)
This is a dual-function (sensing + mechanical pressing+remote control) with all active target area access control exit button . When the infrared sensing fails, it can be operated manually to exit.
Keywords:
Share to:
Product Parameter Parameter Description

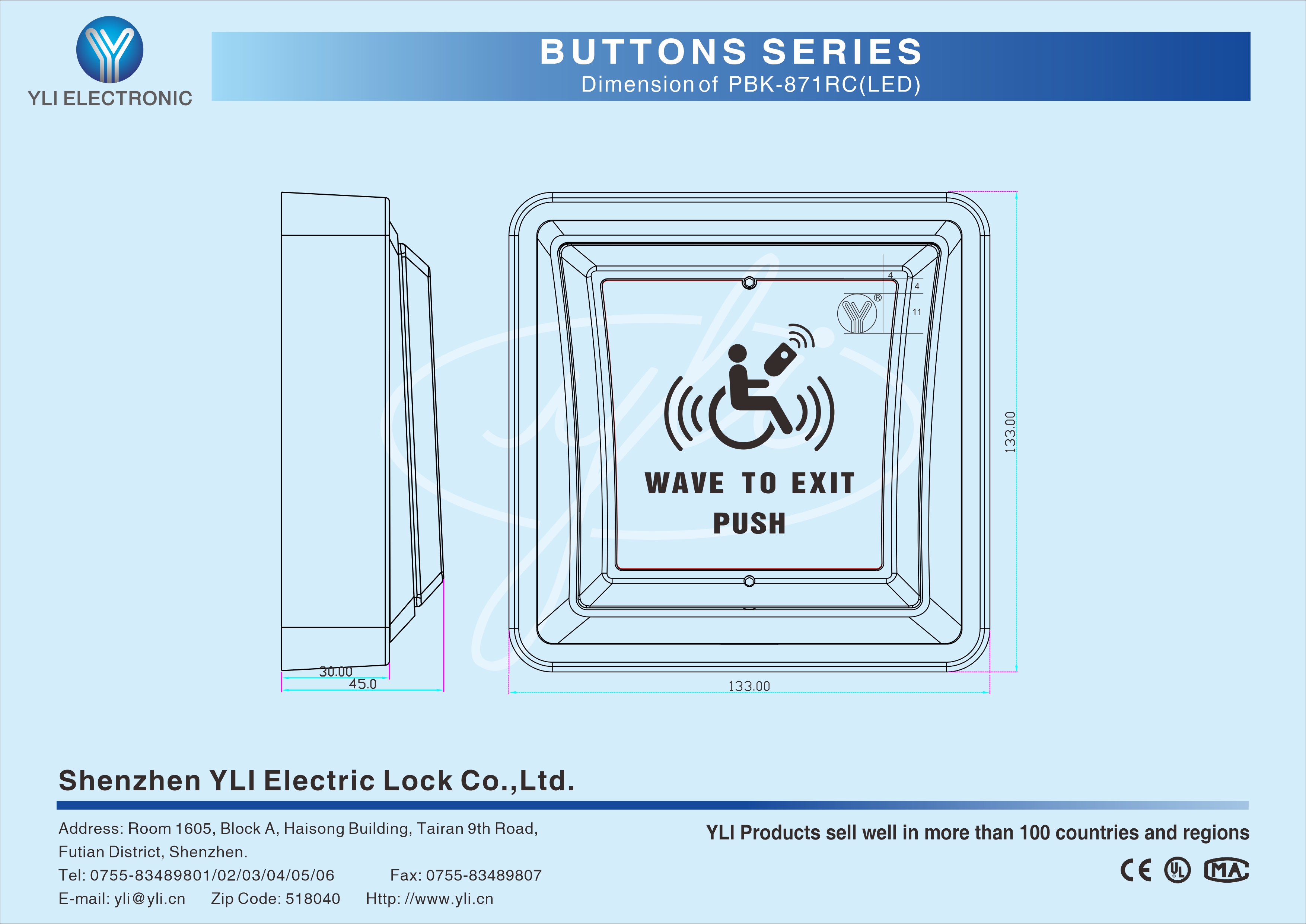

Dimension 133Lx133xW45(mm)
Voltage 12~24VDC
Current ≤120mA
Output Sensor: NO/NC/COM
Push to exit: NO/COM
Contact Rating 2A@30VDC
Sensor Range 6cm
Mechanical life 1000,000 tested
Operating Temperature   -20~+50℃
LED Indicator Red LED standby status,
Green LED: unlocking status
Material Faceplate: PC surface sprayed with oil and UV treatment
Backbox: ABS high gloss finish
Product advantages anti-fouling, wear-resistant, impact-resistant and UV-resistant
Weight 0.2kg
Design without Mechanical Bolt
Stainless steel Panel with Elegant Style
Tested to 1000,000 Cycles
Three Contact Output,Suitable for
all kinds of locks
The Best Choice of Access Control


Warranty Service will be honored if the damage is not caused by human, YLI Provides 1 years warranty for relative products. On the contrary, YLI will charge extra if repair. More information, please browse our service centre.

YLI Company retains right to modify the specification of products, and for parameters amendment of products, we will not inform in advance. The relative pictures are not allowed to used in any other way without the consent of YLI Company. Meanwhile, we reserved all the rights of law for any tangle.
