Australian Standard Electric Strike
There are 2 Similar products,Comparison

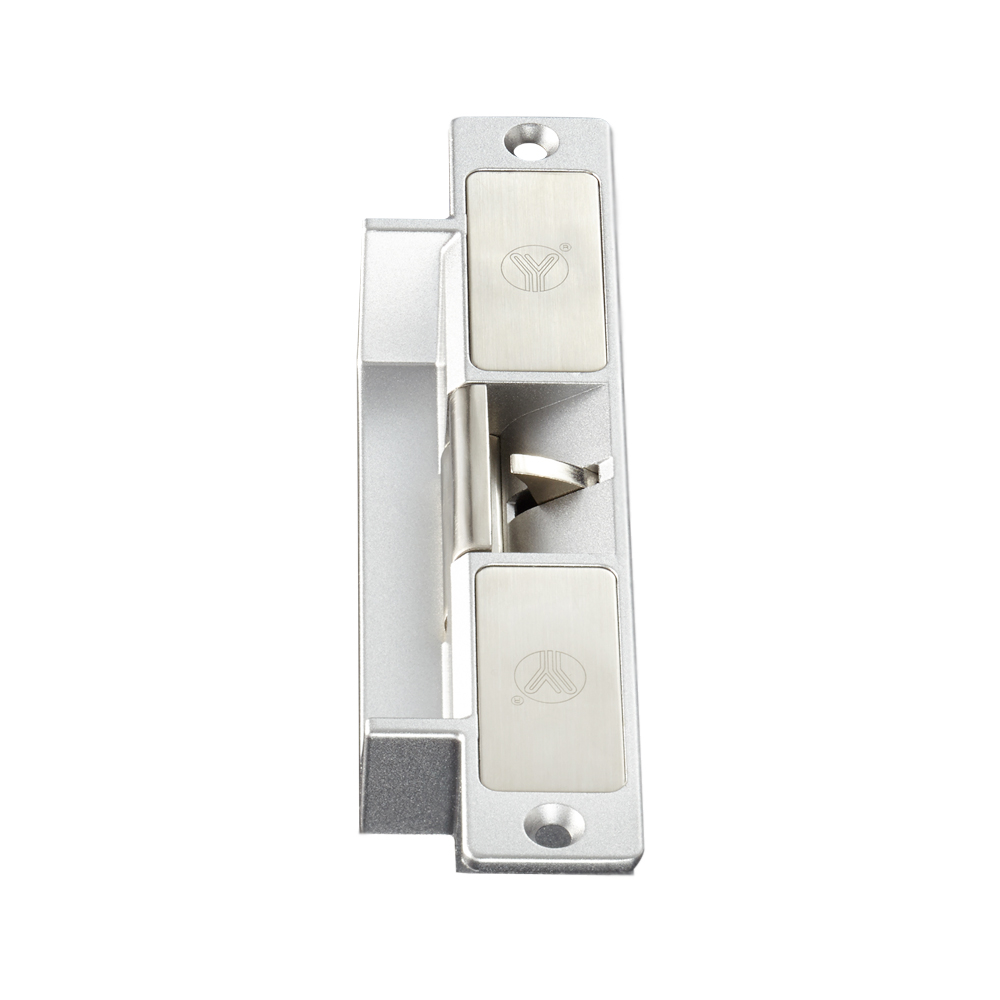

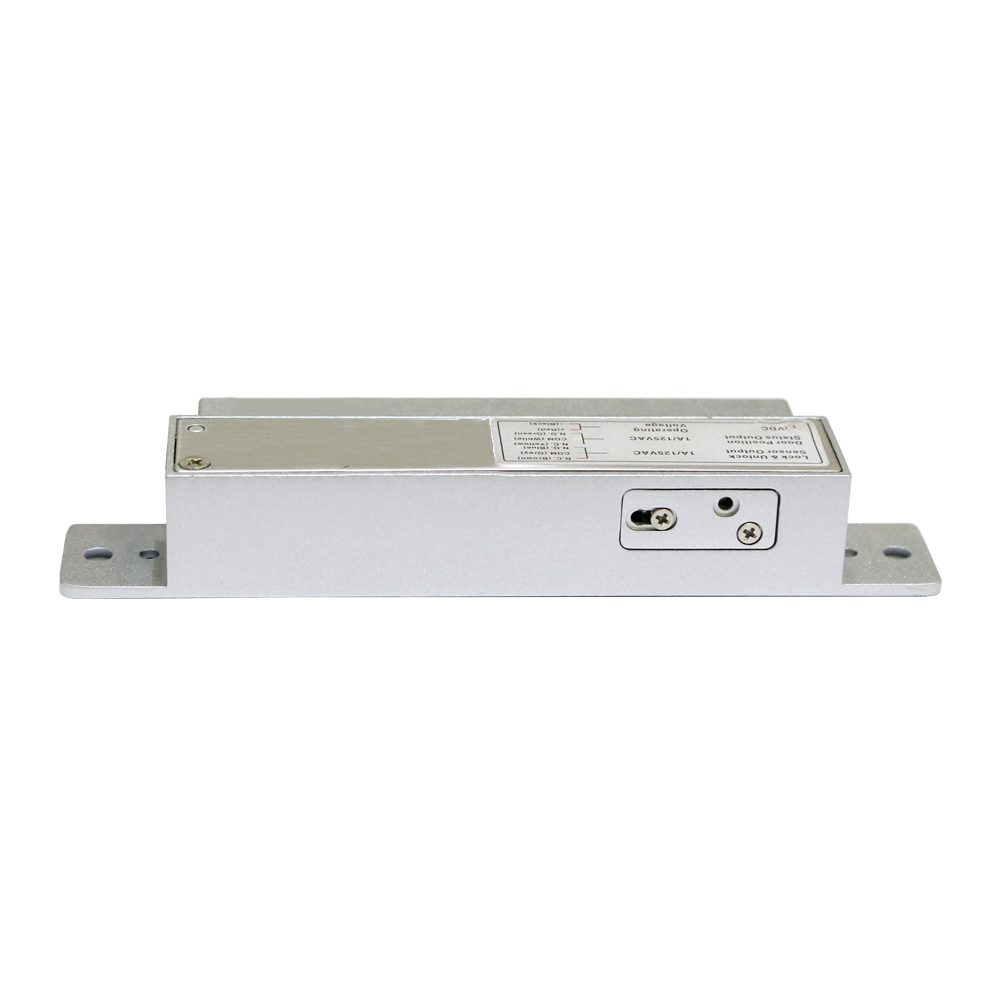

Australian Standard Heavy Duty Electric Strike W/Signal
Model:YS-137-S
YS-137-S is Australian standard heavy duty electric strike with signal, which is designed for the application of Australian type electric mechanical locks. It suitable for wooden door, metal door, PVC door and so on. It can achieve dual functions of "electric control" for daily use and "manual" opening in emergency. It have door signal output (NO, NC COM), which can feedback the door status for access control system. The lock tongue use 304 stainless steel and the internal movable parts are effectively integrated into one, so the structure is firm and the performance is stable. Also it can be selected as (NO, Fail-Secure) or (NC, Fail-Safe).
Keywords:
Share to:
Product Parameter Parameter Description

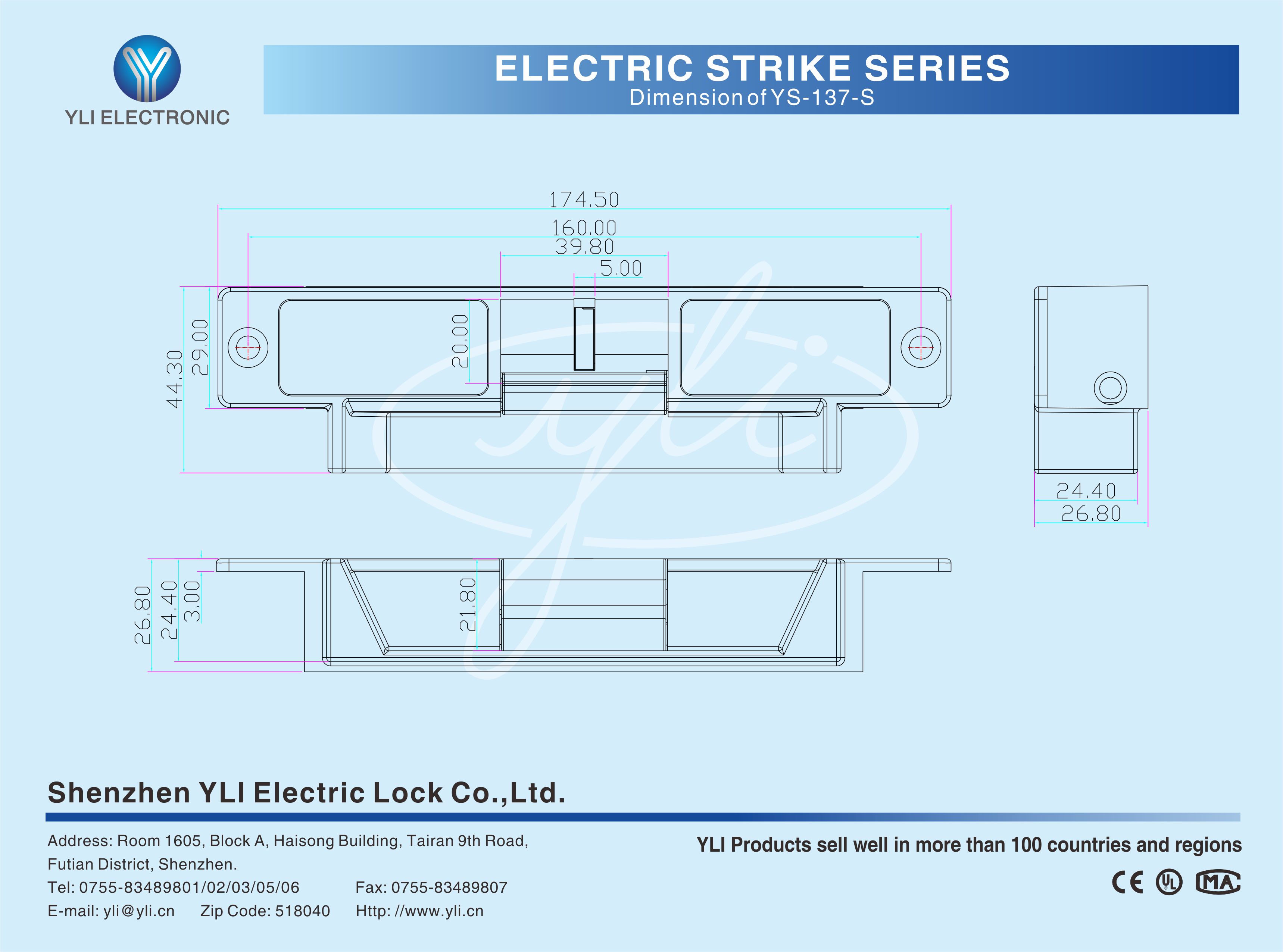

Lock Size 174Lx44Wx27H(mm)
Keeper  304 Stainless Steel
Static strength  500kg
Voltage  DC12V (Need Order DC24V)
Current  12V/320mA;24V/160mA
Door status sensor  NO/NC/COM
Lock status sensor  NO/NC/COM

Panel selection

 Stainless steel, high strength aluminum alloy
Suitable For  Wooden Door,Metal Door
Surface Temperature:  Within +20℃
Suitable Temperature  -10~+55℃(14-131F)
Operating Humidity  0~95%(non-condensing)
Face plate Housing  Painted Steel
Lock tongue  Surface by coating nickel
Protection performance  With Diode Surge Absorption Device
Optional Accessories YS-305  YS-306
Weight  0.5kg
Certification CE-EMC CE-LVD FCC RoHS REACH WEEE
Enhanced stress structure design
Special design, NO/NC Adjustable
100000 solenoid valve special design
Power to open the door or door adjustable power supply
Lock signal NO/NC/COM signal output



Warranty Service will be honored if the damage is not caused by human, YLI Provides 1 years warranty for relative products. On the contrary, YLI will charge extra if repair. More information, please browse our service center.

YLI Company retains right to modify the specification of products, and for parameters amendment of products, we will not inform in advance. The relative pictures are not allowed to used in any other way without the consent of YLI Company. Meanwhile, we reserved all the rights of law for any tangle.

Packing Quantity(PCS/CTN) 60
Packing Size(L*W*H)(cm) 54.5*20*30.5
Gross Weight(KG) 23.4
