UL Magnetic Lock
There are 30 Similar products,Comparison
280kg Single Door Magnetic Lock with LED, Signal & Time Delay(600Lbs)
Model:YM-280NT(LED)-UL
YM-280NT(LED)-UL Single door magnetic lock with time delay function has been certified by UL294 &1034 as well as ANSI/BHMA A156.23 . In terms of safety, durability and environmental adaptability of the product, it has been tested by the world's most stringent standards,providing architects, consulting engineers, system integrators and end users with authoritative and objective product performance and quality assurance.
Share to:
Product Parameter Parameter Description

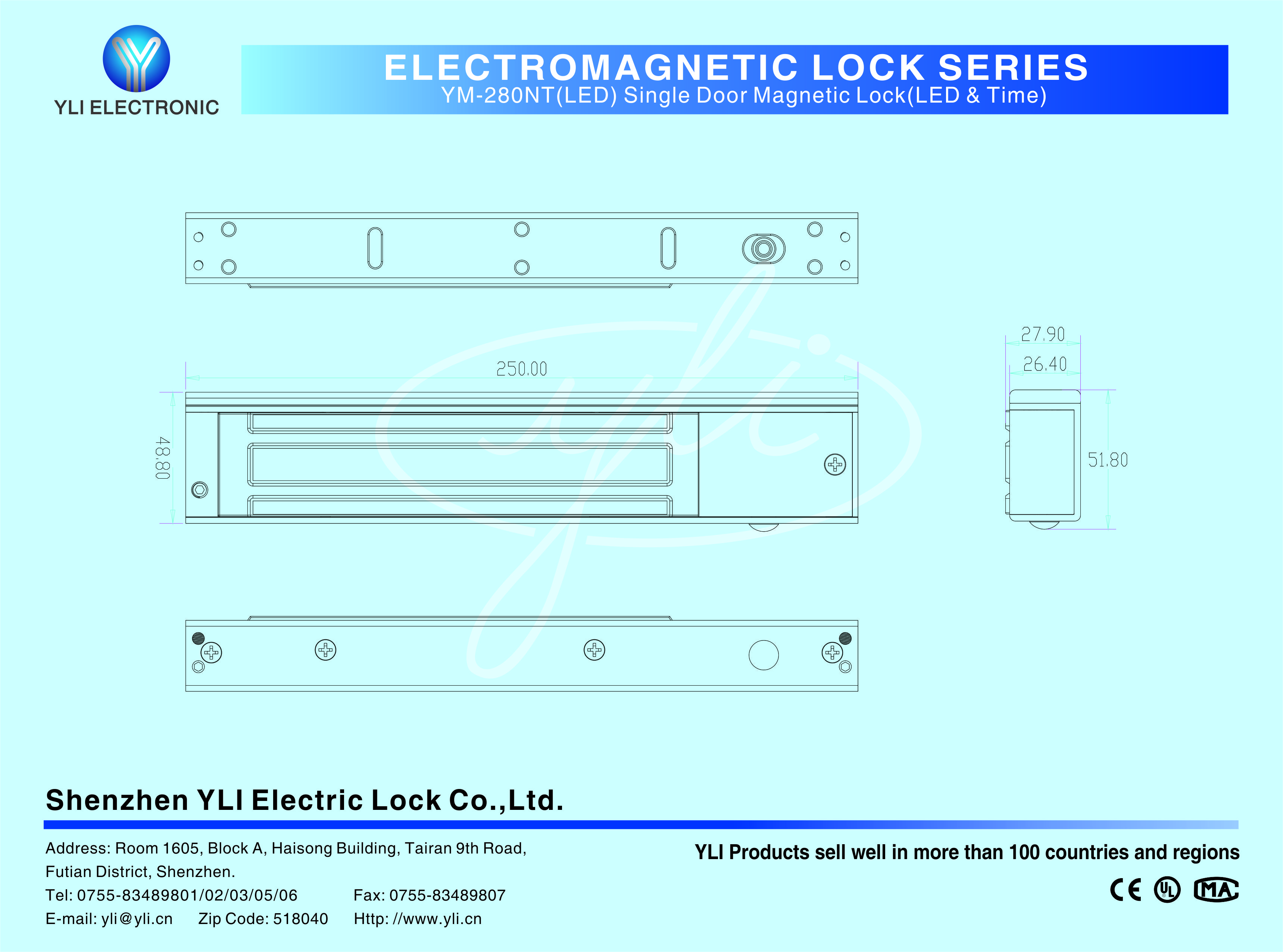

Dimension 250Lx49Wx28H(mm)
Armature Plate Dimension 180Lx38.8Wx13.2H(mm)
Input Voltage DC12V(Default); DC24V(Adjustable)
Current 12V/500mA(±10%) ; 24V/250mA(±10%)
LED Red shows locked ;Green shows unlocked
Signal Output Lock signal(NO/NC/COM)
Holding Force 280kg(600Lbs)±10% direct pull
Operating temperature -30℃~+66℃ (-22~151F)
Operating humidity 0~95% relative humidity
Surface temperature Within 20℃ above ambient temperature
Salt spray test 240-hour exposure (National laboratory report)
Durability test 1,000,000 cycles
Dynamic impact test 45J hammer continuous impact 5 times
Residual magnetism test Demagnetization and unlocking within 0.5 seconds
Overvoltage test 125% overload normal operation
Undervoltage test 85% input voltage pull force test
Housing treatment Anodized hard plating (500-hour salt spray test report)
Lock core certification Encapsulation with American UL-certified fireproof resin
Time 0/3/6/9sec.
Cover Finish Anodized aluminum
Suitable Wooden door , Glass door ,Metal door , Fireproof door
Weight 2.1KG
Certification UL294 & 1034  ANSI BHMA
Collinear Load Test 280kg,600pounds.
Dual Voltage 12 or 24 VDC(optional).
The Standard Voltage is 12VDC when Finished.
MOV Provides Reverse Current Protection.
Anti-Residual Magnetism Designed.
High Strength Material,Anodized Aluminum Housing.
Design without Mechanical Failure.
Increase the holding Force,Dual Insulative Housing.
CE Certificate by European Union,MA Certificate by China Public Security Office.


Warranty Service will be honored if the damage is not caused by human, YLI Provides 3 years warranty for relative products. On the contrary, YLI will charge extra if repair. More information, please browse our service center.

YLI Company retains right to modify the specification of products, and for parameters amendment of products, we will not inform in advance. The relative pictures are not allowed to used in any other way without the consent of YLI Company. Meanwhile, we reserved all the rights of law for any tangle.

Packing Quantity(PCS/CTN) 12
Packing Size(L*W*H)(cm) 54.3*13.5*19.3
Gross Weight(KG) 24.702
